The inteligent slurry production system for batteries consists of raw material batching, slurry mixing, and dispersion transfer systems. It covers storage, metering, conveying, mixing, dispersing, and transfer of powders, sluries, and solvents.The slurry mixing system offers three process options dual planetary mixer, high-efficiency slurry maker, andtwin-screw slurry maker to meet different production needs.

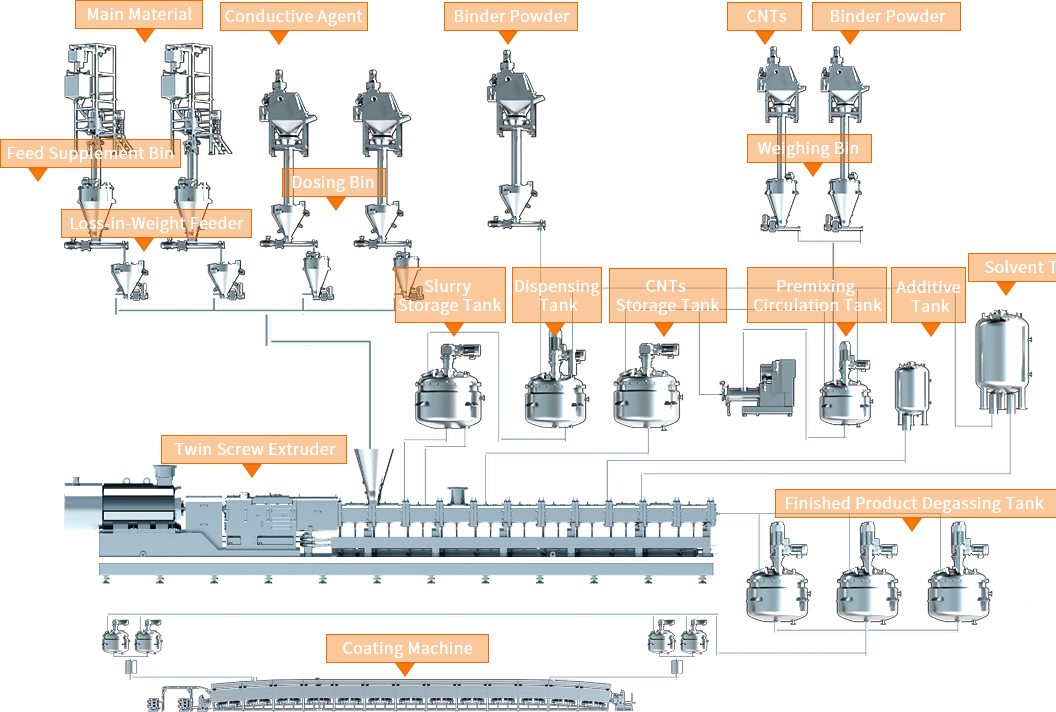

Process diagram

Parts of the Homogenization
System Solution

Automatic Powder Feeding System
Automatic Liquid Feeding System
Twin Screw Extruder
Slurry Storage and Conveying System
Intelligent control system

Turnkey project

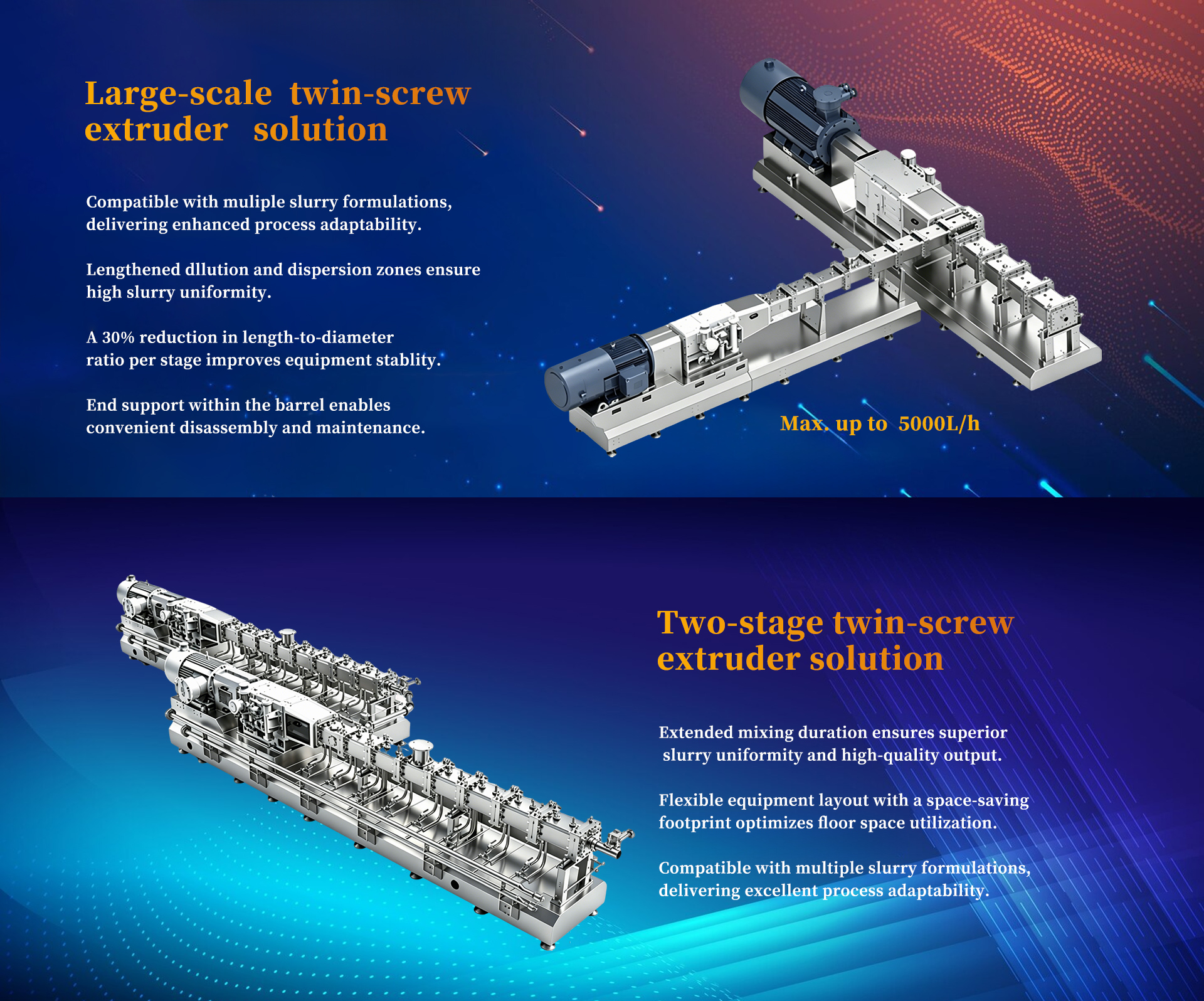

Twin Screw Extruder

Model	Power	Capacity	Aspect ratio	Size
LJYL20	11kw	6-18L/H	44	29506801400
LJYL30	37kw	20-60L/H	44	31427521500
LJYL46	45kw	50-200L/H	44	547417981326
LJYL66	75kw	140-500L/H	44	613213101642
LJYL76	90kw	500-1000L/H	44	673013601657
LJYL96	160kw	700-1500L/H	44	848814331767
LJYL126	315kw	1300-3200L/H	44	992714241861
LJYL156	500kw	2500-4500L/H	44	1208017262148

Fully self-developed/designed/manufactured

30 years+twin screw Design and development experience

Standardized manufacturing process control

Advanced manufacturing equipment

Powerful database for screw configuration design via CFD +big data analytics.Leader in the twin-screw extrusion technology sector, rankingfirst in market share across multiple segments.
The new-generation mainframe, incorporating dense helixscrews and mixing screws, achieves a low L/D ratio andenhanced kneading & dispersion.

Wet Slurry Mixing System Solution

Process diagram

Turnkey project

Twin Screw Extruder

Fully self-developed/designed/manufactured

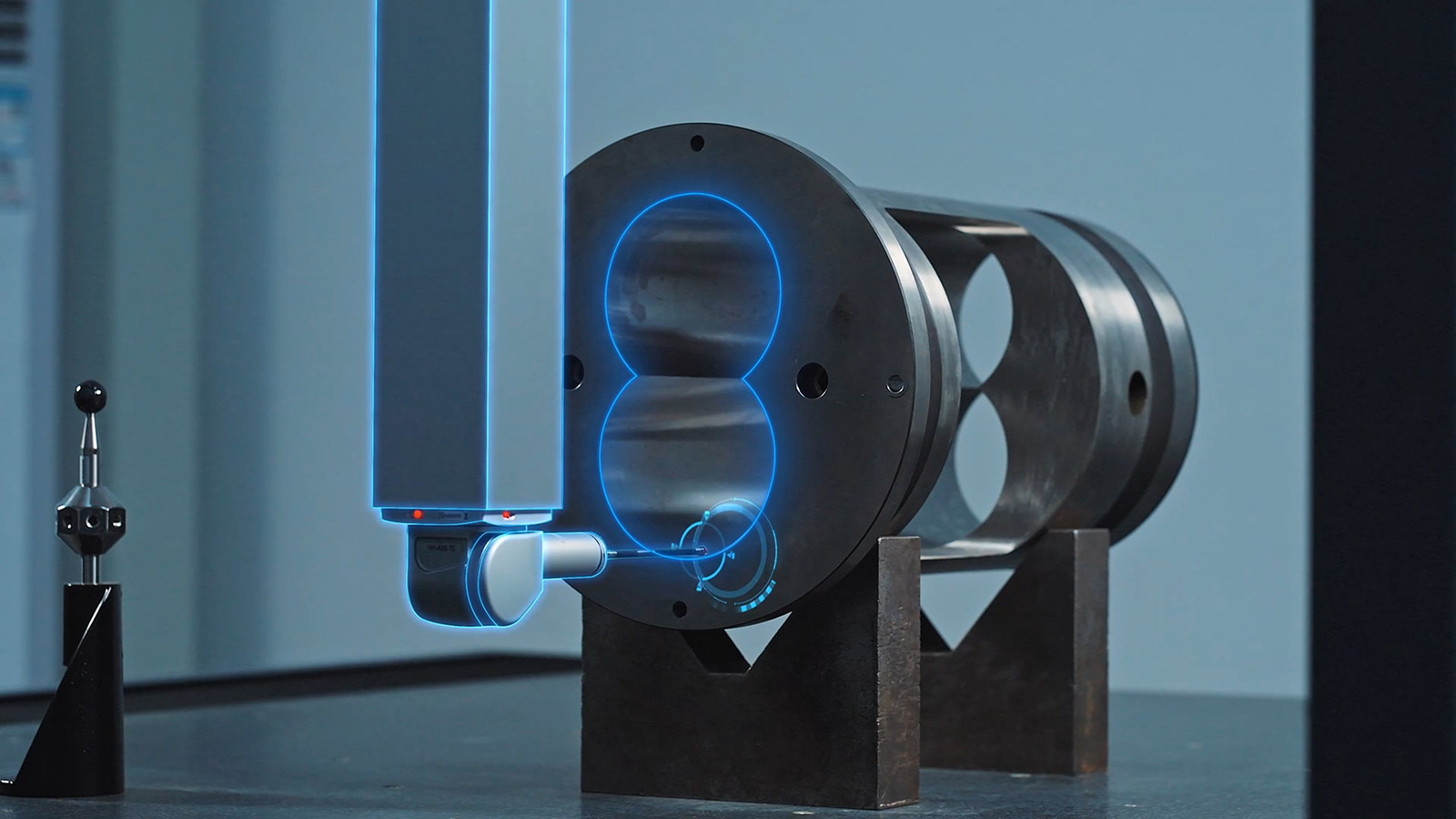

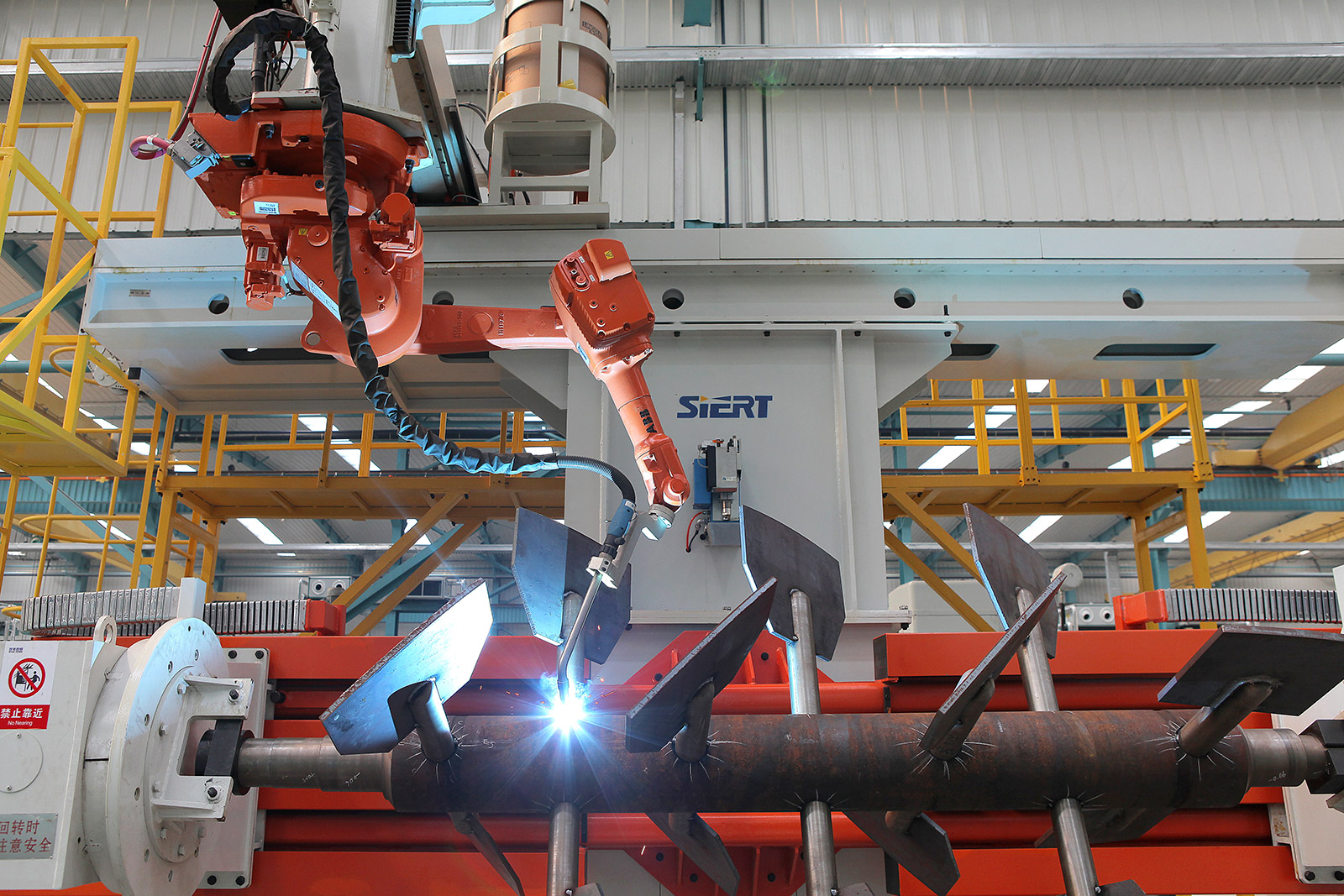

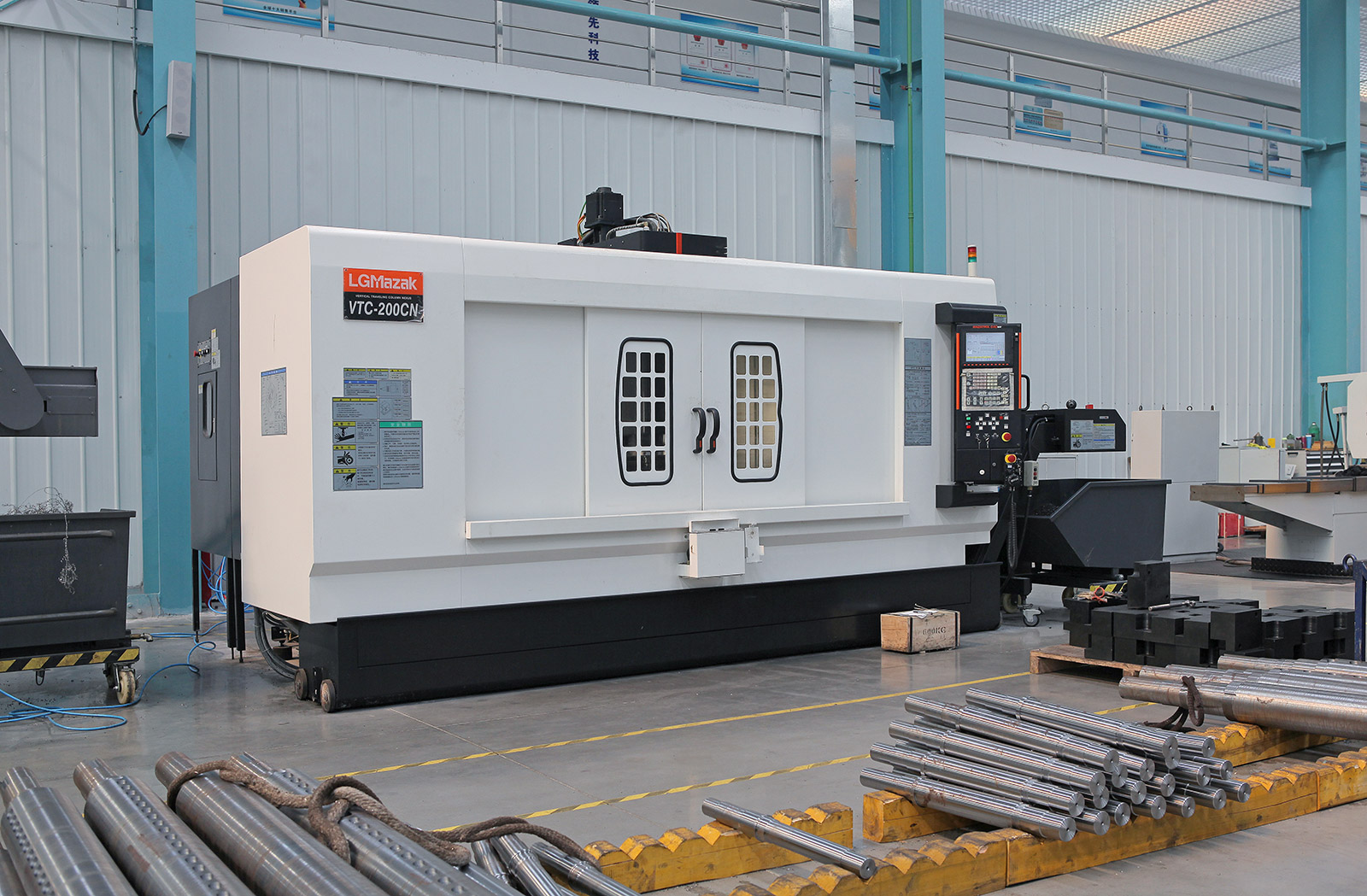

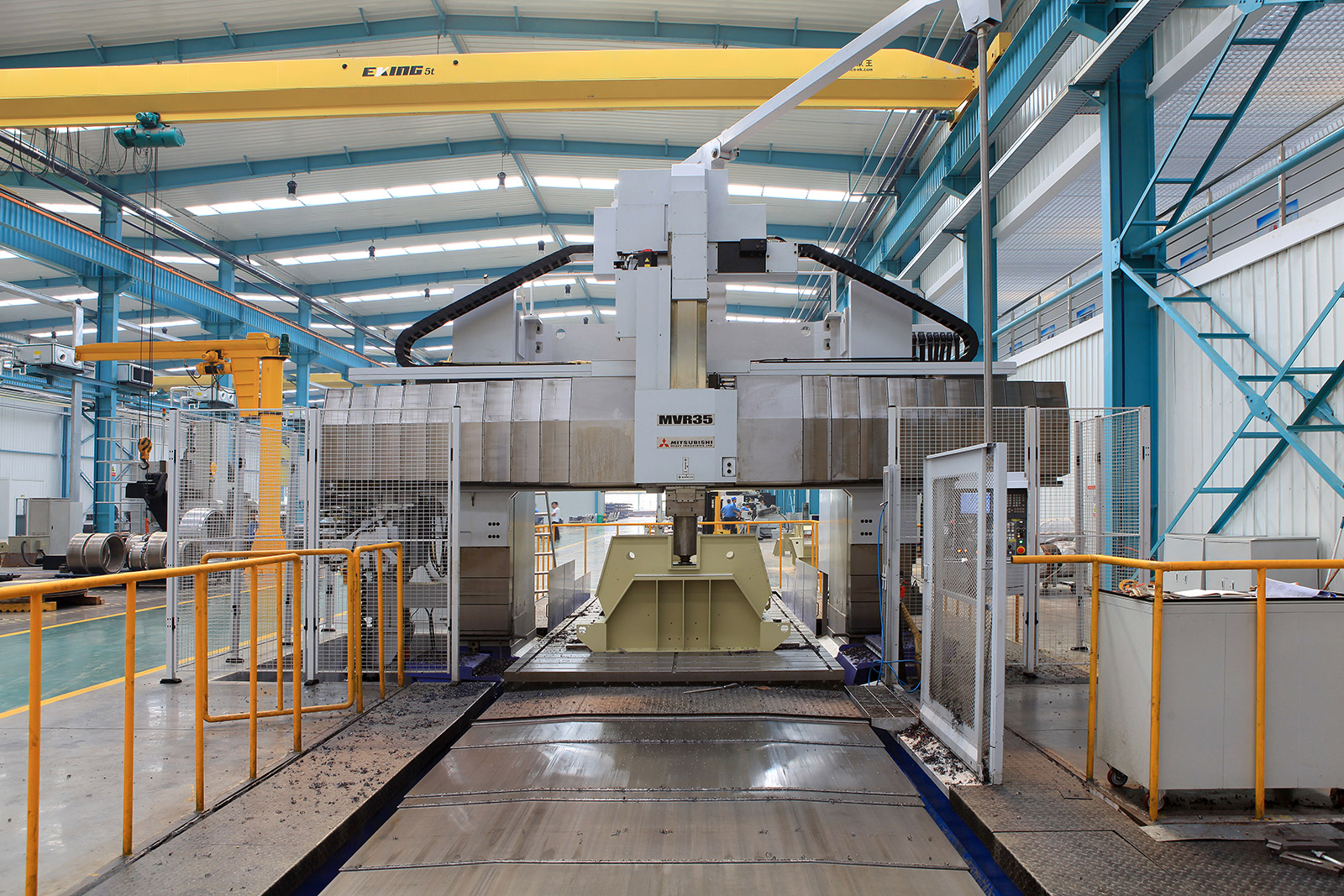

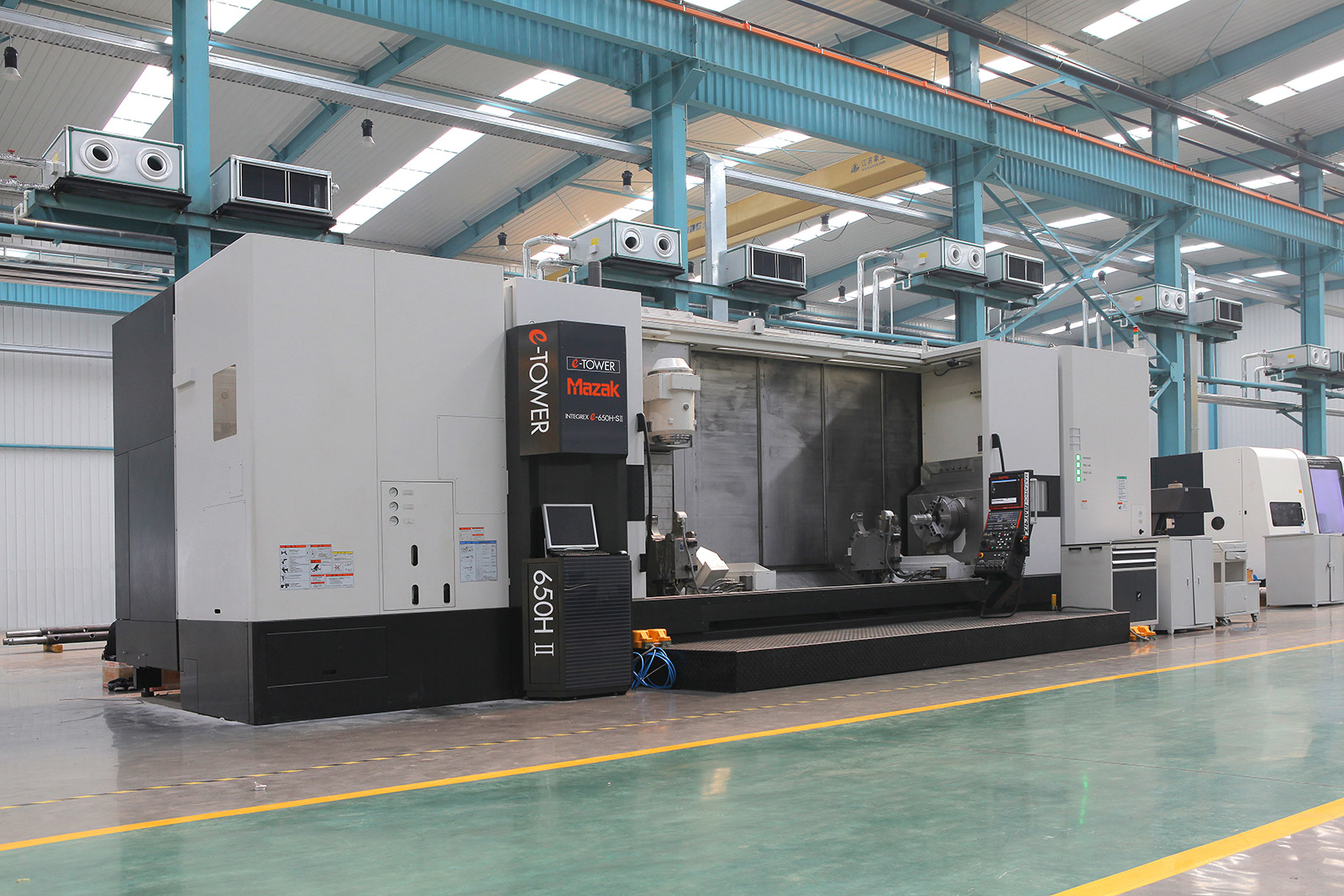

Advanced manufacturing capability
