Liquid materials are metered and fed into the circulation tank. Powder is screw-fed, agglomerates are broken into a dspersed state, thenquickly weted by the liquid for pre-mixing. The mixed slury passes through the integrated dispersing head, where high shear forces achievethorough dispersion. With a dual-tank circulation system, the entire batch is circulated mutiple times, then transferred to a disperser forsingle-tank fine dispersion. After several passes, the final slurry is obtained.

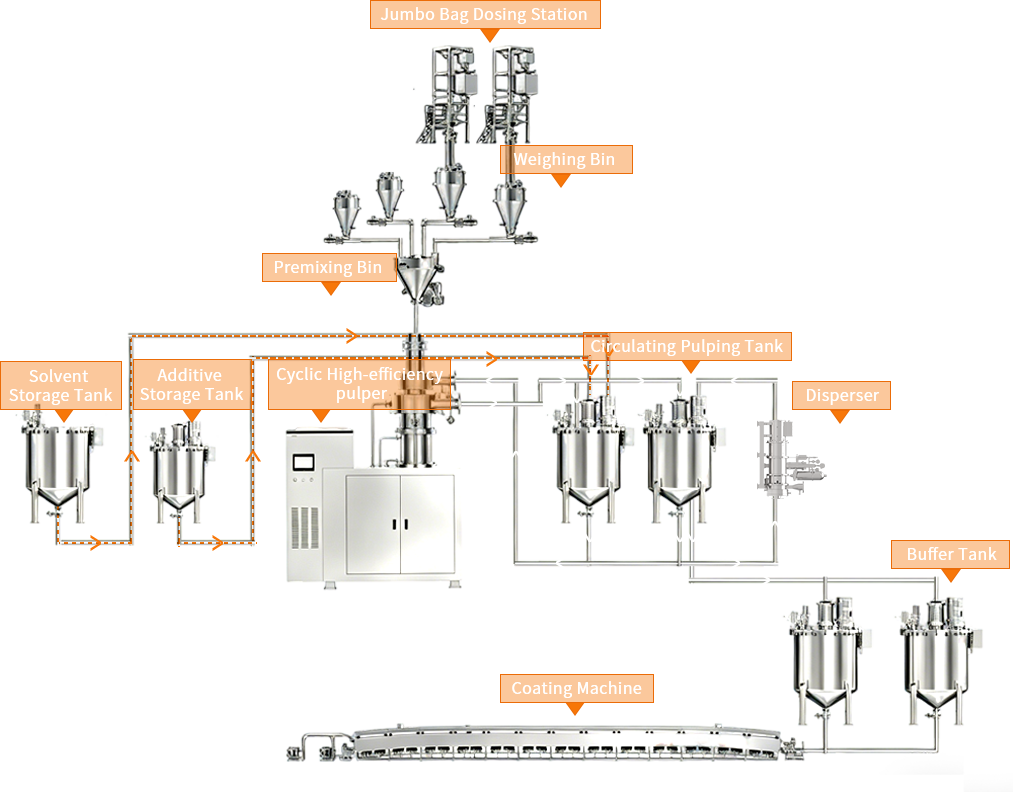

Process diagram

High-efficiency Pulping
System Solution

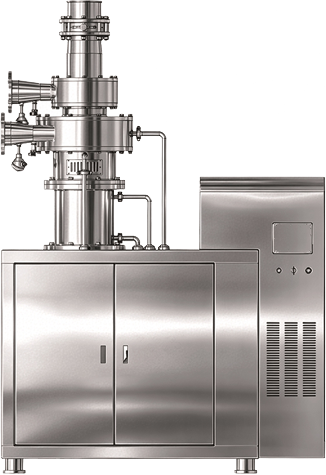

cyclic High-efficiency pulper

The main machine features vertical powder drop, screw-based dispersing &diffusing feed, and top-in-bottom-out slurry flow. Optimized mechanicaldesign-including a new under-mounted direct-drive motor, integratedimpeller-rotor, and surrounding water-cooled dispersionchamber-enhances powder-liquid mixing.
ModelCapacityPowerLine speedSizeWeight
LXHG100100L/h37KW30m/s1450*1200*12001200kg
LXHG300300L/h55KW30m/s2000*1400*25001800kg
LXHG600600L/h90KW30m/s2000*1400*25002000kg
LXHG900900L/h115KW30m/s2200*1600*32502900kg
LXHG12001200L/h150KW30m/s2200*1600*32503250kg
LXHG15001500L/h184KW30m/s2200*1600*32503600kg
LXHG18001800L/h224KW30m/s2400*1700*33504000kg
LXHG24002400L/h296KW30m/s2500*1800*35504500kg

Structural advantages

Multi-layer spiral feed structure
Spiral linear feeding structure reduces blade resis-tance and boosts shearing capacity. Quickly breaksup agglomerated powder for diffused feeding, en-hancing powder wetting.
High-shear impeller-rotor
Single-layer perforated plate with eightblades optimizes structure, boostsdischarge, reduces clogging risk, andallows easy cleaning/maintenance.
Efficient motor drive
New direct motor drive + VFD design optimizesmechanical structure, cuts transmission energyloss, lowers failure risk, and boosts reliability.
Water-jacketed chamber
Water-cooling jacket on dispersion chambercontrols temperature rise, keeping slurry below 45°C.
