HUACAl Dry Electrode Layer utlizes twin-screw extrusion and low-binder (PTFE < 2%) fibrilation technology to produce continuous high-solid-contentself-supporting fims. Integrated multi-stage calendering ensures uniform thickness, while high-temperature dual-sided lamination with stepwisetemperature control enhances fim-current collector adhesion (tension > 0.5MPa) Sovent-free process eliminates NMP polution, achieving highefficiency, energy-saving, and cost-effectiveness.

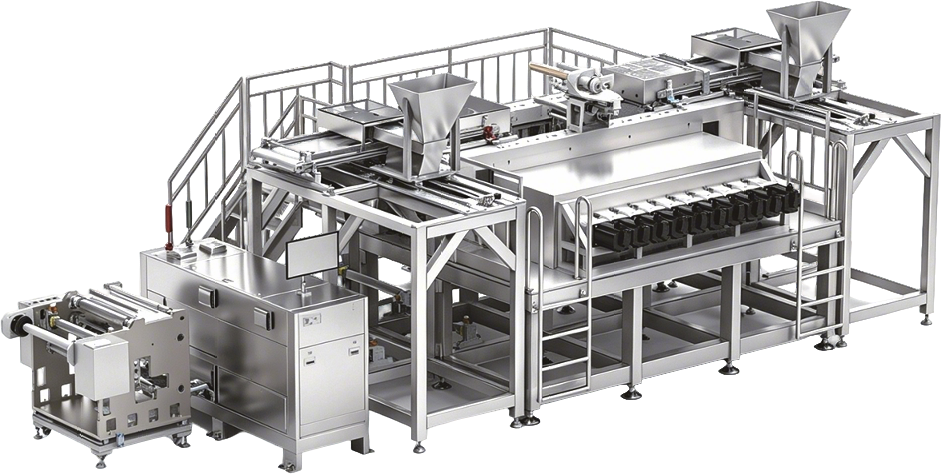

Roll Press Film Series

Film Laminating All-in-One

Model	Max speed (m/min)	Film width (mm)	Film Thickness (mm)	Thickness tolerance (um)	Effective line rolling force (N/mm)	Size(mm)
LDCC-6250	50	250	0.1-0.5	± (1.5-2)	800	730041003000
LDCC-1040	50	400	0.1-0.5	±(1.5-2)	800	810043003000
LDCC-1460	50	600	0.1-0.5	± (1.5-2)	800	895045003000

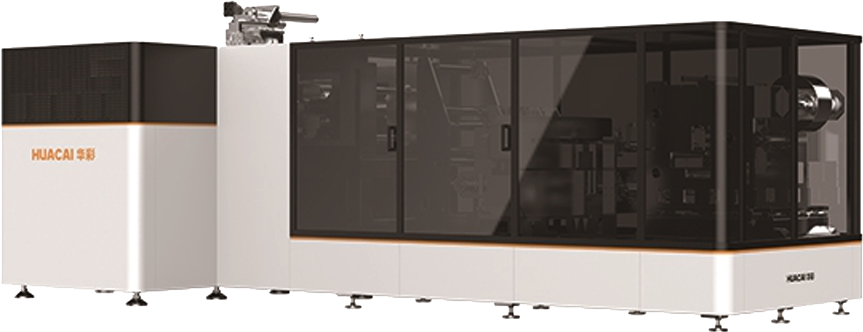

Multi-Stage Calendering Film-Forming & Winding System

Model	Max speed (m/min)	Film width (mm)	Film Thickness (mm)	Power/Voltage (KW/V)	Maximum winding diameter(mm)	Size (mm)
LDCP200*250	50	250	0.1-0.5	215/380	300	660030002490
LDCP200*350	50	350	0.1-0.5	225/380	300	660031002490
LDCP200*450	50	450	0.1-0.5	240/380	300	660032002490

High-Temperature Dual-Sided Lamination System

Model	Rolling speed (m/min)	Composite width (mm)	Power/Voltage (KW/V)	Maximumunwinding diameter(mm)	Maximum winding diameter(mm)	Size(mm)
LTCT350*400	50	250	55/380	300	450	550015001800
LTCT350*550	50	500	60/380	300	450	550016501800
LTCT400*750	50	700	65/380	300	450	550018501800

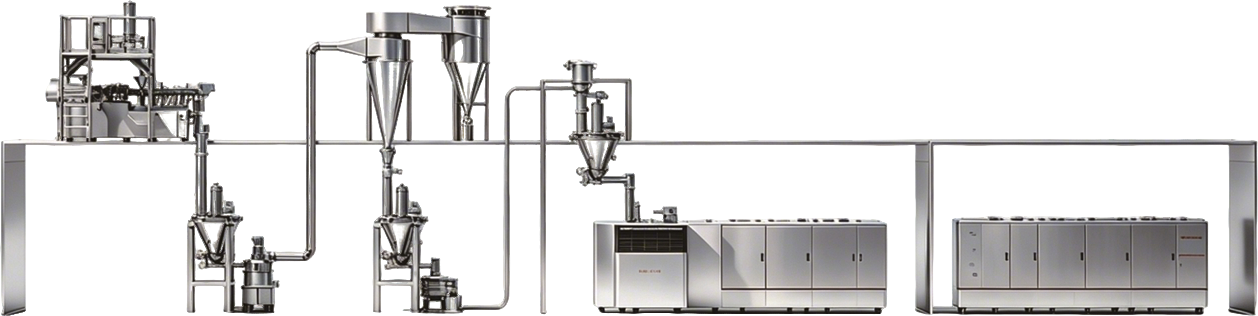

Dry Electrode Production Line

Roll Press Film Series

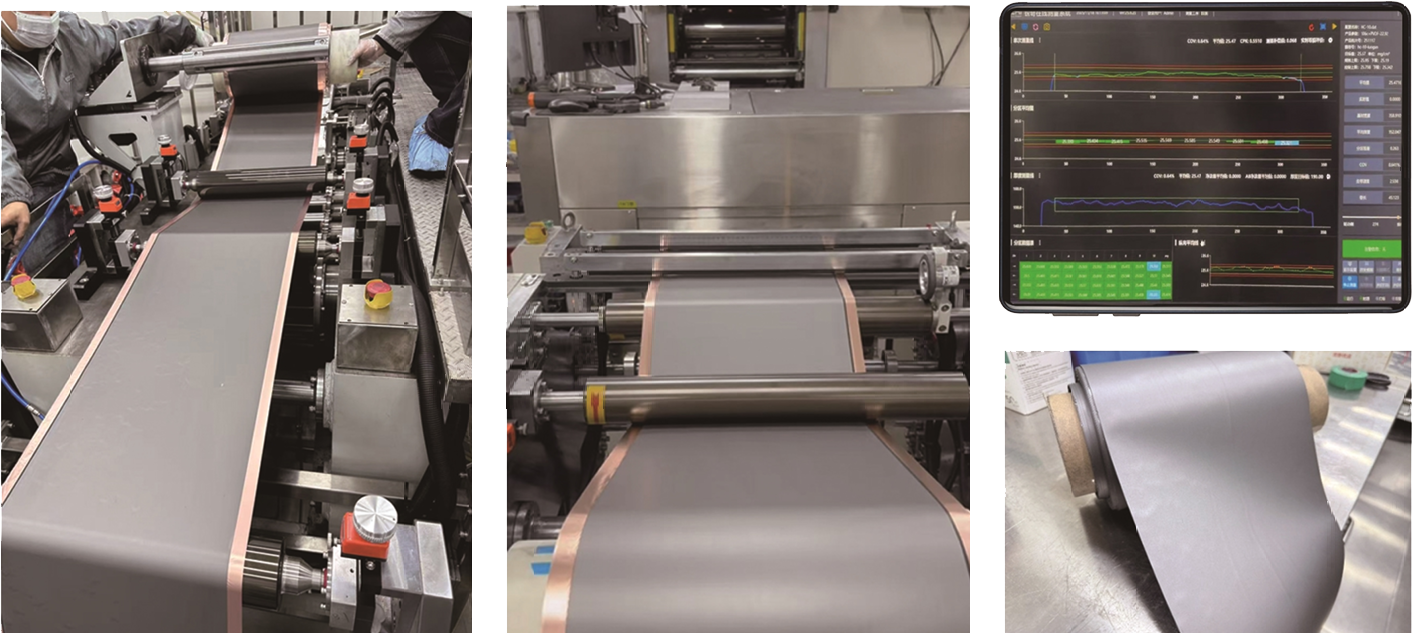

Experimental images
